NEW Load Trail 20' BEAM FRAME Equipment Trailer - $6,800 (Commerce City)

NEW Load Trail 20' BEAM FRAME Equipment Trailer 1

NEW Load Trail 20' BEAM FRAME Equipment Trailer 1 thumbnail

5600 E 72nd Ave

google map

condition: new

make / manufacturer: Load Trail

model name / number: equipment hauler

paint color: black

size / dimensions: 83"x20'

more ads by this seller

QR Code Link to This Post

New Load Trail equipment hauler that is 83" wide 20' total length (18'deck+2'dovetail). This trailer has a GVWR of 14,000lbs and a payload capacity of 10,398lbs(empty weight of 3,602lbs). This trailer is built on a 8" I-beam frame. The frame is 13 lb/ft, heavier than the 10 lb/ft used by most mfgs. Trailer has a bolt on 10k jack and adjustable 2 5/16" coupler. The tool box is large with a divider in the middle to segment your tools and the ramps have greater reinforcement in the middle. The rub rails also have a dedicated chain tie down and there are a total of 8 D-rings. This trailer can haul many different machines. Includes factory warranty. Trailer floor is sealed. Please call for details!!! (303) 289-7293

8" I-Beam Frame

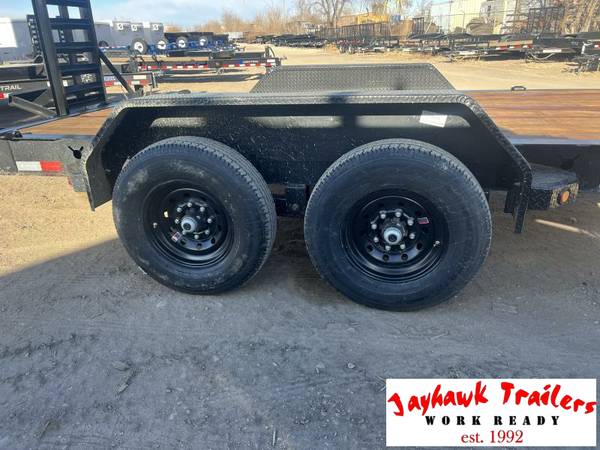

2 - 7,000 Lb Dexter Spring Axles (2 Elec FSA Brakes)
ST235/80 R16 LRE 10 Ply. (BLACK WHEELS)
Coupler 2-5/16" Adjustable (6 HOLE)
Treated Wood Floor w/2' Dove Tail(Only On 12' & Up)
Diamond Plate Fenders (removable)

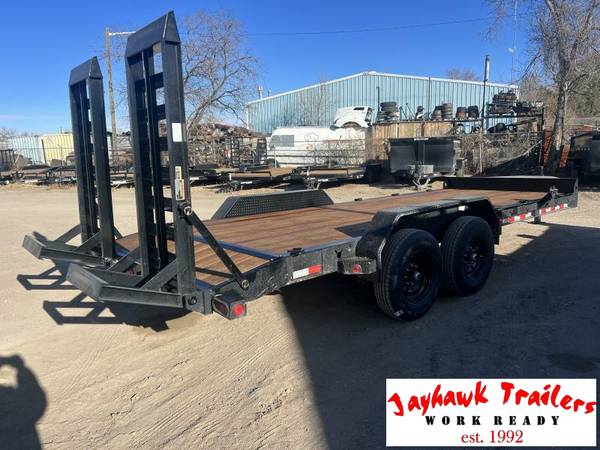

Fold Up Ramps 5' x 24" x 4" (carhauler dove)
16" Cross-Members
Jack Spring Loaded Drop Leg 1-10K
Lights LED (w/Cold Weather Harness)
8 - D-Rings 4" Weld On
Front Tongue Mount(MAX-Box w/Divider)
3" - Rub Rail
Spare Tire Mount (HD)
Black (w/Primer)

Jayhawk Trailers, dealer #42119, 303-286-7293. 5600 E. 72nd Ave. Commerce City, CO 80022. Colorado residents will be charged applicable tax. We reserve the right to charge 2% for credit card transactions.
