New Diamond T 32' Tandem Dual Gooseneck Trailer - $15,900 (Commerce City)
5600 E 72nd Ave
QR Code Link to This Post
you can see similar inventory here:
https://www.jayhawktrailers.com/all-inventory/gooseneck-trailers/?utm_source=craigslist&utm_medium=classifieds&utm_campaign=recurring
102” Wide
32’ Long
2-10k Axles
10ply tires
2 jacks
MAXX ramps

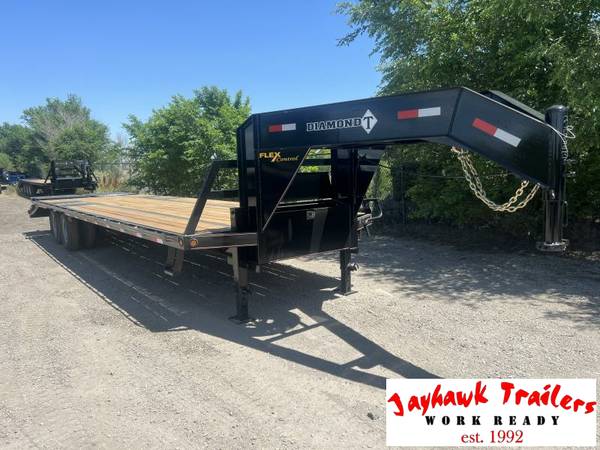

New 32’ long(27’ flat+5’ dove) 102” wide deck gooseneck from Diamond T. This trailer has 2-10k dexter axles with electric brakes and two 12k Jacks at the front. This unit has MAXX ramps on the rear with a double spring assist system to help make folding and unfolding the ramps much easier. Toolbox and mounted spare tire in the neck. The deck is stained by us to help protect against the weather.
• Lockable Toolbox in Neck
• Torque Tube for Flex Control
• Pipe Spools in Rub Rail
• Side Marker/Turn Lights

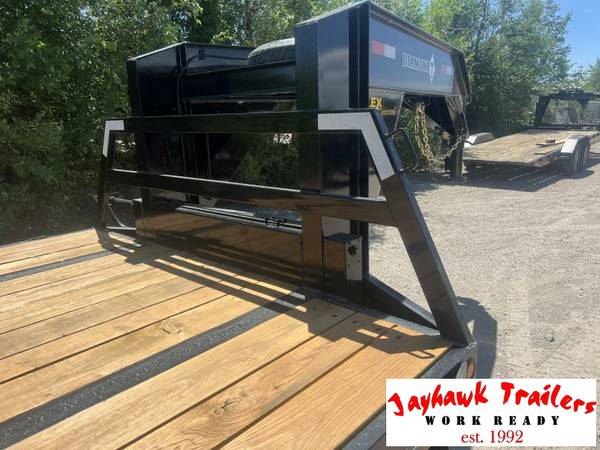

• See Thru Headache Rack

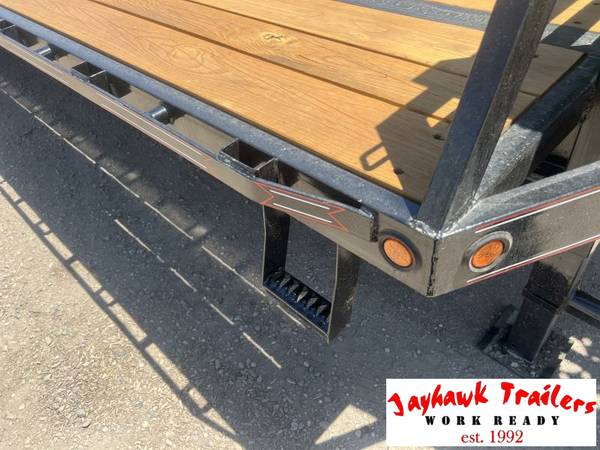

• Front Steps w/ Grab Handles
• Sealed Factory Wiring Harness
• Low Profile PIERCED Beam Frame
• 100% Prime and Paint
• All Sealed LED Lights
• 5' Dovetail w/ H.D. Tubing Tailboard

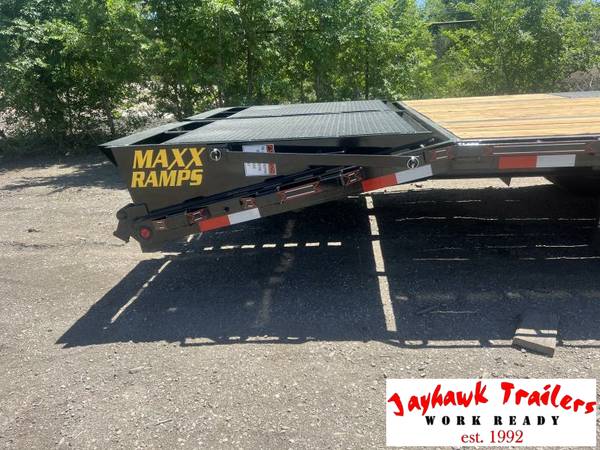

• Double Hinge - Spring Assist Ramps
TECHNICAL SPECIFICATIONS

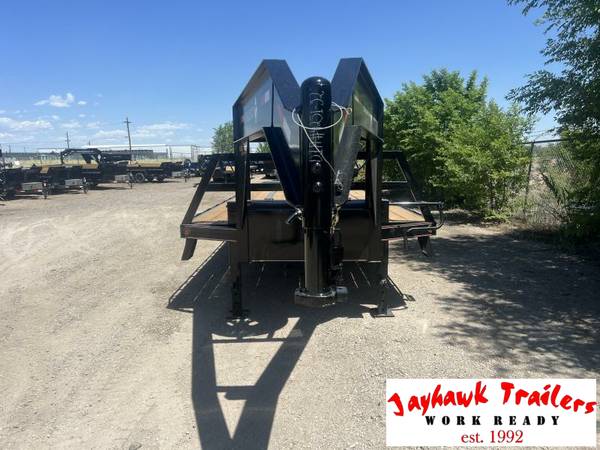

Coupler: 2 5/16" Round Adj.
Jacks: 2-12000 lb rated Dropleg
Safety Chains: 3/8" w/Sliphook
Neck: 12" WF Beam
Main Frame: 12"x19 lb rated PIERCED Beam
Outer Frame: 5" Channel
Rubrail: 3/8"x2" Flat w/SP 2' OC
Cross Members: 3" Channel 16" Spacing

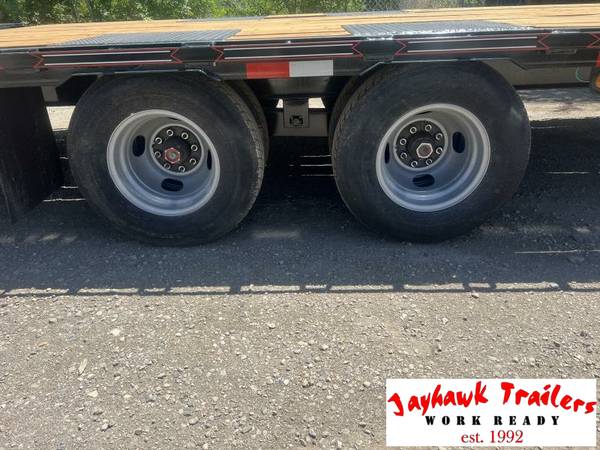

Axles: 2-10000 lb rated Dexter Oil Bath Electric Brake
Suspension: Dexter 5 Leaf Slipper
Tires: 235/16 ST Load Range E Radial

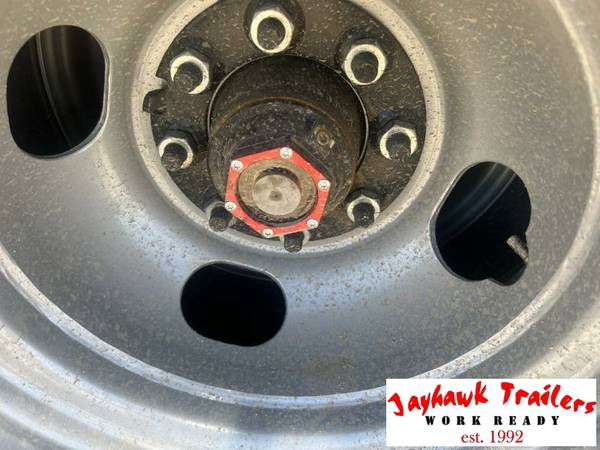

Wheels: 16" 8 on 6 1/2" Dual
Dovetail: 5' All Steel Dovetail and Ramps
Flooring: 2x8 Pressure Treated Pine
Lights: All Sealed LED Stop, Tail, Turn and Clearance
Finish: Phosphate etched, primed, 2 coats acrylic enamel
Jayhawk Trailers, dealer #42119, 303-286-7293. 5600 E. 72nd Ave. Commerce City, Co. 80022. Colorado residents will be charged applicable tax. We reserve the right to charge 2% for credit card transactions.
