Diamond T 16' tandem axle ramp gate trailer - $4,300 (Commerce City)
5600 E 72nd Ave
QR Code Link to This Post
you also see our all our inventory here:
https://www.jayhawktrailers.com/all-inventory
83" WIDE
16' LONG
7,000 lb GVWR

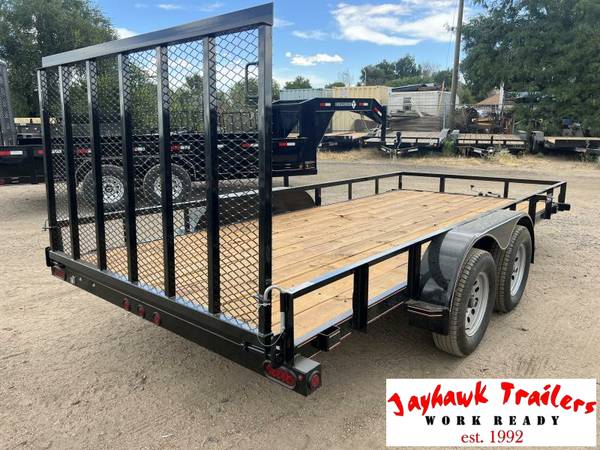

New Diamond T utility trailer that is 16’ long and 83” wide. The trailer has two 3500 lb Dexter brake axles and has a sturdy wrap around tongue. The GVWR is 7,000 lbs with a payload capacity of 5,480 lbs and an empty weight of 1,520 lbs. The gate on the rear folds both ways and the trailer comes with a spare tire mount. This trailer has a heavy duty cast coupler and a jack that swivels up. The floor has been sealed.
Rock Guard on Fenders
Tubing tail board w/sealed LED’s
Wrap Around Tongue
Wiring Sealed in frame
E-TRACK CLIPS for Straps and Tie downs
100% Prime and Paint
Coupler: 2” Bulldog style cast
Jacks: 2000 lb rated Swivel
Safety Chains: 1/4” diameter
Tongue: 4” Channel
Frame: 3”x2”x 3/16” Angle
Top Rail: 2”x2”x1/8” Angle
Uprights: 2”x2”x1/8” Angle
Cross members: 3”x2”x 3/16” Angle
Axle: 3,500 lb Dexter Brake w/EZ Lube
Suspension: 4 Leaf double eye
Tires: ST 205/75R15 Load Range C (6 Ply)
Wheels: 15” 5 on 5”
Fenders: 9”x72” w/radius cut back
Flooring: 2x8 Pressure treated pine
Lights: All Sealed LED Stop, Tail, Turn and Clearance
Paint: Phosphate etched, primed, 2 coats acrylic enamel.
Jayhawk Trailers, dealer #42119, 303-286-7293. 5600 E. 72nd Ave. Commerce City, Co. 80022. Colorado residents will be charged applicable tax. We reserve the right to charge 2% for credit card transactions.
