Advantech FWA2320 1U Rack Mount Server: 16GB, 128GB mSATA,4Ethernet - $150 (DTC)
Arapahoe road near Boston St
condition:
good
make / manufacturer:
Advantech
model name / number:
FWA-2320
size / dimensions:
1-U Size
QR Code Link to This Post

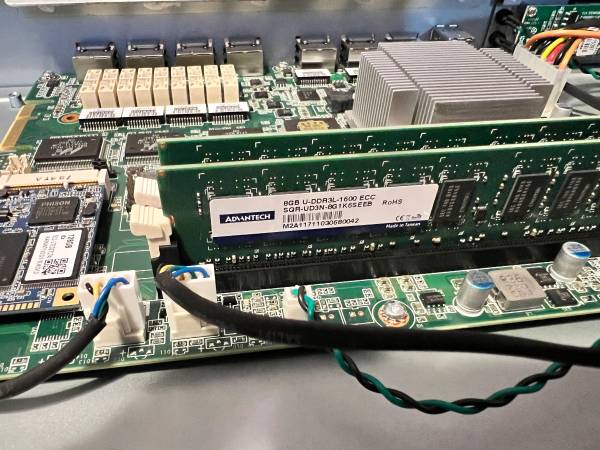

This headless unit has 4 1-gig Ethernet ports (Marvel 88E111 chipset), a 8-core Intel Atom x86 processor running at 2.4Ghz speed (2.6Ghz Boost Clock) 16GB of RAM (2 desktop-size ECC modules) and a 128GB NVMe SATA drive for the OS. Two SATA ports are also available for storage.

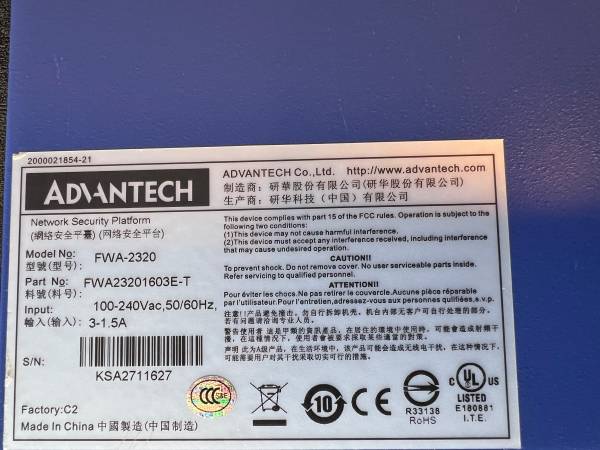

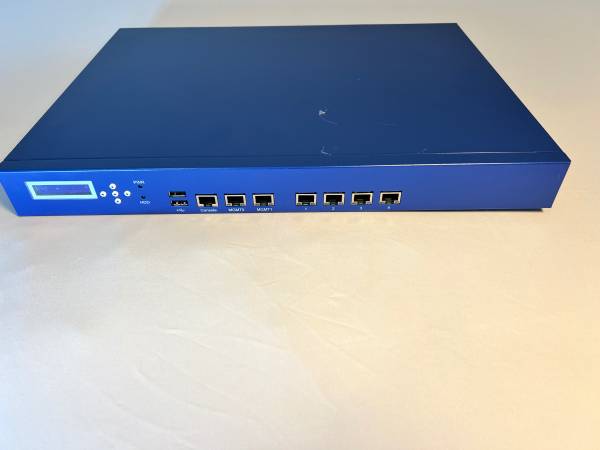

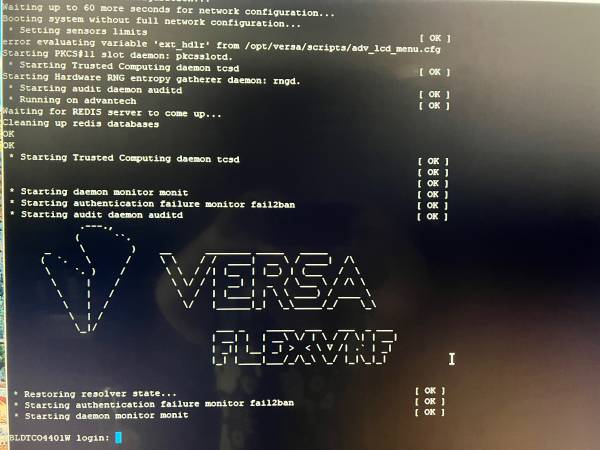

Power efficient: draws 1.5-3Amp. Boots to custom Linux distribution into Versa FlexVNS. This is a working system pull that boots. Console cable to access admin interface is included. The front display shows status, 4-button input (dependent on software). No software licenses are included.

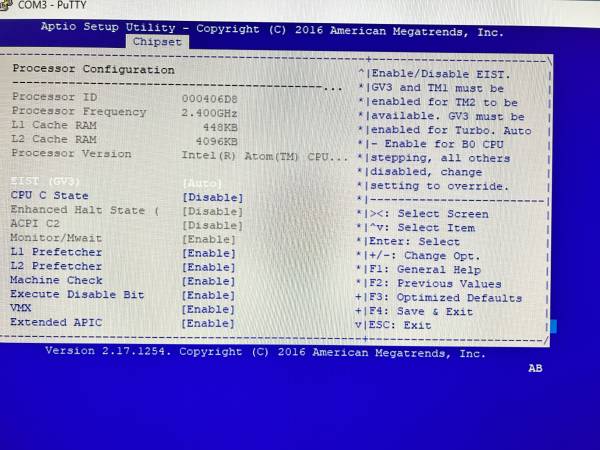

Enabling boot-to-usb in bios would be only thing required to install a new OS. As a new device, it can be reimaged to run linux, windows (headless mode) for x64 Atom platform. Several online projects recommend using this server with open source software such as PFSense. Will ship, as-pulled, with a release of Versa FlexVNF on Linux (on-drive) but the root user password would need to be reset. This can be done with Linux tools.
Overall, functional and power efficient unit. With 8-core x64 Intel Atom, it could be perfect for home lab, firewall, disk storage, VoIP or VPN appliance.
Please review pictures for condition questions; they are of the actual item for sale. Mounting ears are not included. Will ship in a plain, non-retail box with power cord, Ethernet cable and a Cisco-standard serial console (db-9).
Can meet at a Starbucks in DTC near my work or at my home in castle rock. Will not ship.
