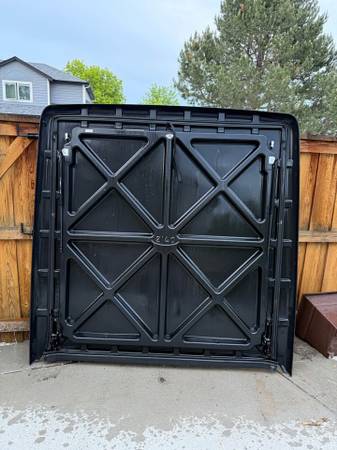

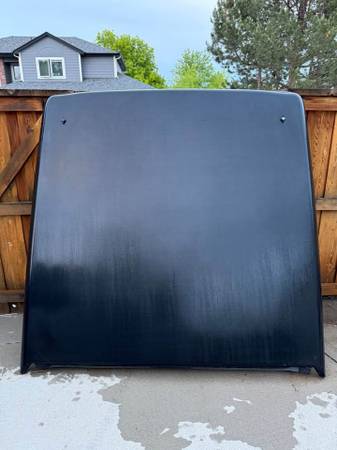

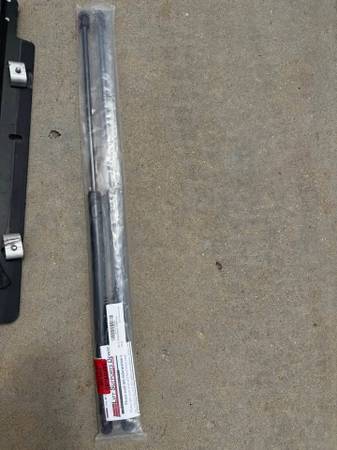

Tonneau Hardtop, new locks & hydraulics. Any Make/Model - $185 (Thornton)
128th Ave near York
QR Code Link to This Post

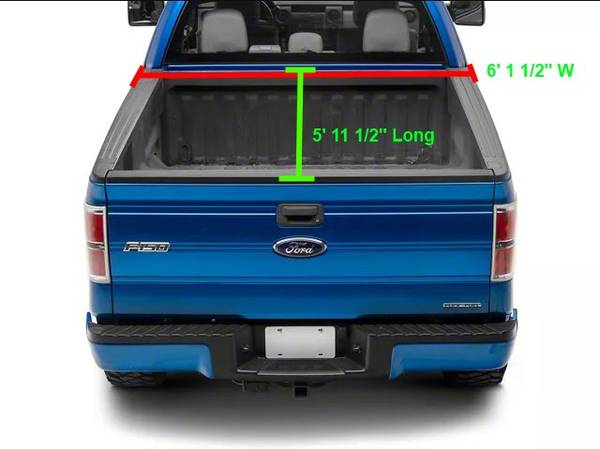

My trucks outer dimensions
Width 73.5in
Length Center of the bed from glass to end: 71.5 in
Inner dimensions
Width only, the clamps are only on the side: 62.5 in
Doesn't need to be exact, should be able to clamp up to 63.5 inches wide inner dimension is my guess.
- Came off my 2010 Ford F150 Crew Cab
- Easy to install, install guide below.

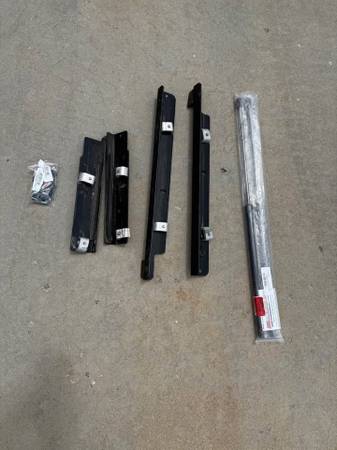

- Simple bracket and clamp system will work on any bed that has an inner measurement of 62.5 in to 63.5 in wide. My trucks outer measurements are 73.5in Wide, by 71.5 in Long

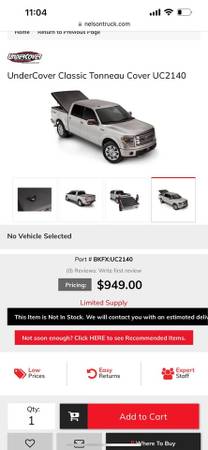

UnderCover - Classic Tonneau Cover P/N UC2140 Features:
* Lightweight
* Durability/Toughness And Impact Resistance
* Standard No Drill Concealed Clamp Installation
* Heavy Duty Steel Powder Coated Frame Rails
* Includes Garage Wall Storage System
* Weather-Tite
* Sleek Styled Contour Custom Fit
* UV Protected Polymer Finish
Product Documents:
Trucks that are 2009 to current
INSTALLATION GUIDE
https://www.catalograck.com/ImgVD/UNT/HH.pdf
Specs:
https://www.summitracing.com/parts/ucv-uc2140?srsltid=AfmBOoqmCIEtsYXSf7v2qOQJ3HQhCrCSHlf19nd0D2r92T-N3fEigQS-
