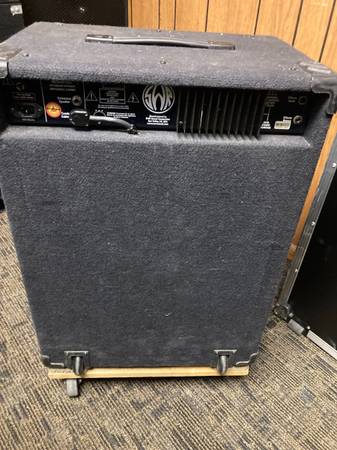

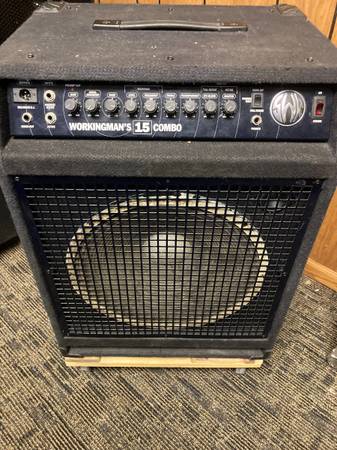

SWR working mans 15 combo amp $200 or with JBL E140 speaker $300 - $200 (Denver)
QR Code Link to This Post
with the smoother JBL E140 instrument designed speaker - $300
Power Output: 160 Watts RMS, 200 Watts RMS @ 4 Ohms
(with 8 ohm extension speaker)
Impedance: 8 Ohms (internal speaker only) This is still 8 ohm with the JBL.
Dimensions: 20.75" W x 27.625" H x 16.25" D
Weight: 61 lbs. May be 5 lbs more with JBL
I have a .pdf of the manual available.
THREE WAY SELECTOR SWITCH
The top position, labeled Full Range, activates both the tweeter and the 15" woofer in the Workingman’s 15, as well as the
extension speaker jack. This position is the most typical setting.
The middle position, labeled Headphones Only, disconnects the signal going to the internal speakers and extension speaker
jack. Use this position when listening with heaphones only or for silent tuning (refer to To Tuner section). The Headphones jack is
always active regardless of the switch’s position.
The bottom position, labeled Horn Off, disconnects the tweeter located in the upper right hand corner of the speaker cabinet.
It will not affect the 15" woofer, headphones or any extension cabinet.
