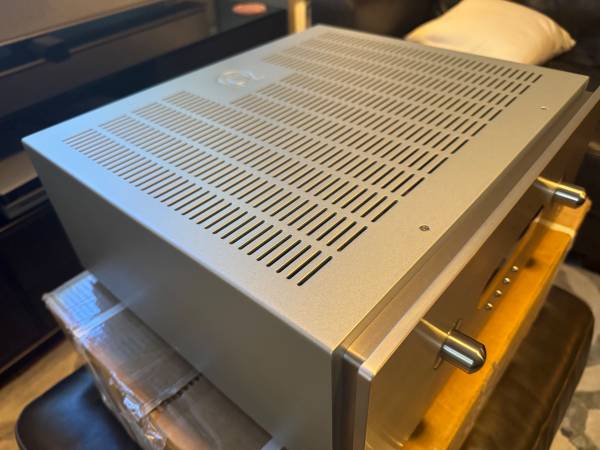

Primare SPA22 Home Theater HD Audio Receiver - $1,100
QR Code Link to This Post
https://primare.net/wp-content/uploads/2017/06/SPA22-user-manual.pdf
DACs and analogue circuits:
The audio DACs are 24bit, 192kps WM8740s from Wolfson, used in conjunction with Burr Brown OPA2134 and
Texas Instruments NE5532 operational amplifiers for the analogue, semi-balanced, DC-servo controlled, buffering
and filtration circuits. These feed the purified audio signal into an eight-channel low distortion, half passive volume
control CS3318 from Cirrus. Lesson learned from the SPA21: for the SPA22 we have located all the gain stages
and DC-servo circuits before the volume control in order to achieve a much better signal to noise ratio. An eight
and 2-channel analogue bypass mode bypasses the DSP completely, are still available, for the analogue fans.
SPA22 features (including HD Audio upgrade)
• Modular design architecture
• 1080p/1080/24 HDMI Switching (3 in / 1 out)
• Component / Composite / S-Video
• 5 x 120 Watts
• Multi-channel PCM compatible
• Dolby True HD, DTS-HD MA, Dolby® Digital, Prologic IIX, EX 7.1, dts®, dts-ES 6.1, Neo6
• Re-Routable Front Channels in 7.1 Mode
• DVD-A & SACD 7.1 Input.
• Fully Configurable & Format independent Bass Management
• Discrete IR & Full RS232 Operation.
• Programmable Triggers
• Dimensions W x D x H mm: 430 x 385 x 180
2CH Modes:
Stereo
Bypass
Party
Dolby Prologic IIx Music
Dolby Prologic IIx Movie
DTS NEO:6 MUSIC
DTS NEO:6 CINEMA
Surround Decoding Formats:
Dolby TrueHD
Dolby Digital
Dolby Digital EX
Dolby Prologic II
Dolby Prologic IIx
DTS-HD MA
DTS
DTS ES
DTS Neo:6
DTS 96/24
MULTI/2 CH
PCM/LPCM
